PTO Post Hole Digger Gearbox: Selection and Application Guide

A post hole digger looks like just another piece of farm machinery but that gearbox inside it has a tough job. It takes power from the tractor PTO, it changes the speed and torque and then delivers that power to the auger.

If the gearbox is not properly matched to the tractor and working conditions, the results can be unpleasant: slow digging, excessive PTO vibration, overheating, or even complete gear and shaft failure.

So, how do you choose the right PTO post hole digger gearbox? Let’s look at the key points.

What Is a PTO Post Hole Digger Gearbox?

A PTO post hole digger gearbox connects the tractor’s power take-off (PTO) to the auger. Its main job is to transfer power while providing the speed and torque needed for digging.

The basic power path is simple:

Tractor PTO → Gearbox → Output Shaft → Auger

The tractor provides the input power. The gearbox controls how that power is transferred, and the auger does the actual digging.

Different gearboxes may have different gear ratios, shaft sizes, mounting dimensions, and torque capacities. That is why one gearbox is not automatically suitable for every post hole digger.

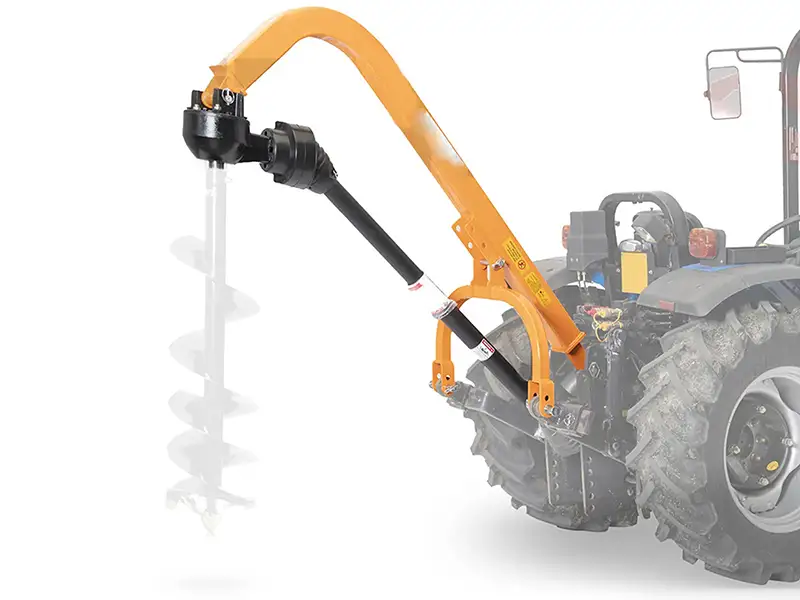

Agricultural PTO Shaft for Post Hole Digger Gearbox

1. Check the Tractor PTO Speed

Start with the tractor.

PTO speed is one of the first specifications you’ll check when purchasing a gearbox. Many agricultural machines use a 540RPM PTO, but the input speed requirement depends on your machine and gearbox design.

Use the wrong input speed, and output speed, torque and performance will be adversely affected.

Before you purchase your gearbox, double check the PTO speed your post hole digger requires.

2. Match the Gear Ratio

Gear ratio has a direct effect on output speed and torque.

A gearbox reduces the input speed from the PTO and increases the available torque at the output shaft. In simple terms, a suitable reduction ratio helps the auger turn at a useful working speed while providing enough force for the digging job.

The right ratio depends on the gearbox design, tractor PTO speed, auger size, and application.

For this reason, do not select a gearbox by looking at the ratio alone. It needs to work as part of the whole system.

3. Consider Tractor Horsepower and Torque

More horsepower does not always mean that any gearbox will work.

The gearbox must be big enough to deal with the power and torque provided by the tractor. A gearbox that’s too small for the job will see excessive wear, or damage, to the gears, bearings and shafts under heavy load.

Think also about the working conditions: digging in soft soil can be very different from working in harder, rocky ground.

A gearbox for hard working applications needs enough torque capacity and mechanical strength to take on those loads.

4. Check the Input and Output Shafts

Shaft compatibility is another detail that is easy to overlook.

Before purchasing a PTO post hole digger gearbox, check:

  • Input shaft size
  • Output shaft size
  • Shaft type
  • Keyway or spline design
  • Shaft length
  • Connection method

The gearbox may have the right gear ratio and torque capacity, but if the shafts do not match your equipment, installation can still be a problem.

5. Make Sure the Mounting Dimensions Fit

A replacement gearbox should fit the existing machine without unnecessary modification.

Check the mounting hole pattern, housing dimensions, flange design, and available installation space.

For aftermarket replacement, it is useful to compare the original gearbox with the replacement unit before ordering. Photos and basic dimensions can also help confirm compatibility.

6. Choose the Gearbox Based on the Auger

The auger size also matters.

A larger-diameter auger generally requires more torque, especially when working in hard soil. A smaller auger may have lower torque requirements.

But auger diameter is only one factor. Soil type, digging depth, tractor power, and working speed all affect the actual load on the gearbox.

The goal is to create a balanced combination of tractor, gearbox, and auger.

Common Applications

PTO post hole digger gearboxes are widely used with agricultural and farm equipment. Typical applications include:

  • Fence post installation
  • Farm and ranch work
  • Orchard planting
  • Landscaping
  • Agricultural construction
  • Utility and ground preparation work

The working environment can vary a lot, so gearbox selection should always be based on the actual application.

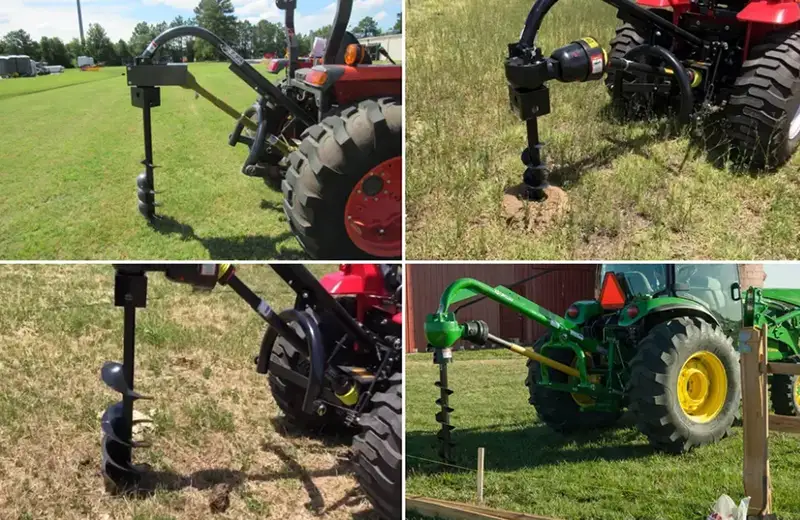

Post Hole Digger Applications

Basic Maintenance Tips

Even a well-selected gearbox needs proper maintenance.

Check the gear oil regularly and use the lubricant recommended for the gearbox. Inspect seals for oil leakage and pay attention to unusual noise, vibration, or excessive heat.

It is also a good idea to inspect the input and output shafts during routine maintenance. Early signs of wear are much easier to deal with than a complete gearbox failure in the middle of a job.

Choose the Right Gearbox for Reliable Performance

Selecting a PTO post hole digger gearbox is not just about finding a gearbox that fits.

You need to consider PTO speed, gear ratio, tractor horsepower, torque capacity, shaft dimensions, mounting requirements, and auger size together.

GELWERK provides post hole digger gearboxes for agricultural machinery and PTO-driven applications. Different specifications can be supplied to meet various equipment requirements, including OEM replacement and aftermarket applications.

Looking for a suitable post hole digger gearbox? Contact GELWERK with your gearbox specifications, equipment model, or key dimensions to discuss the right solution for your application.

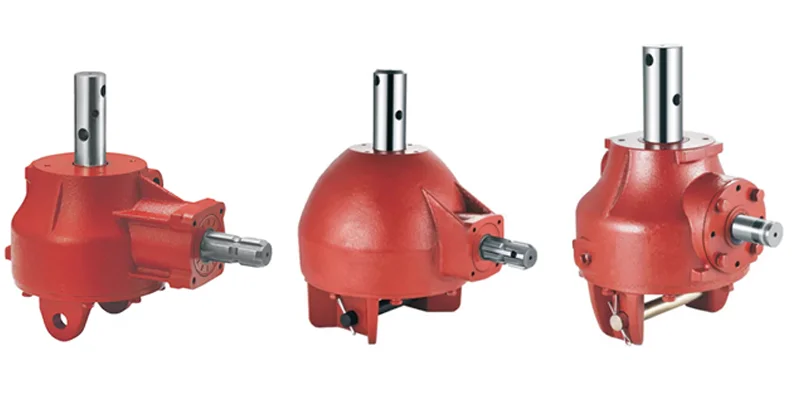

PTO post hole digger gearboxes for agricultural machinery
